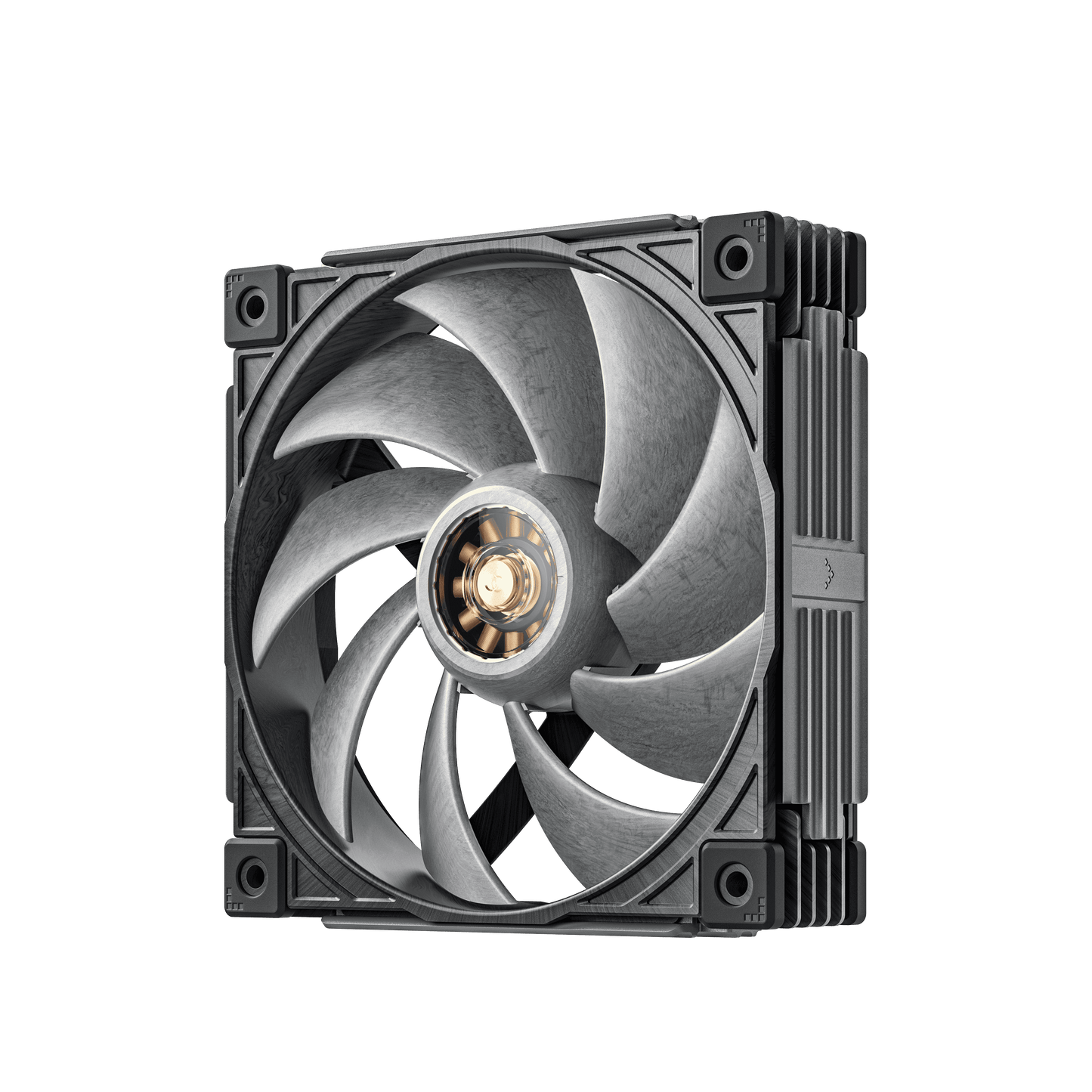

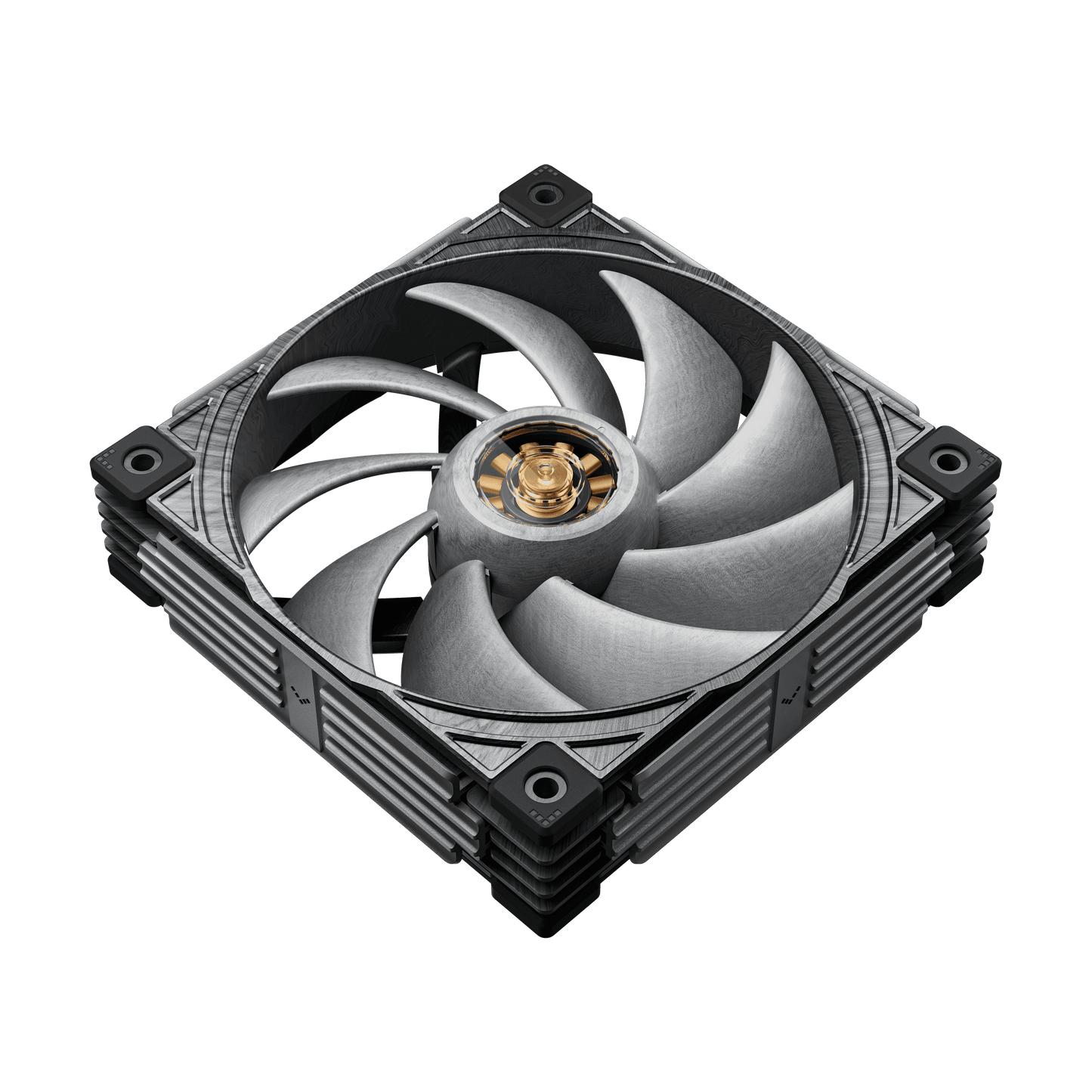

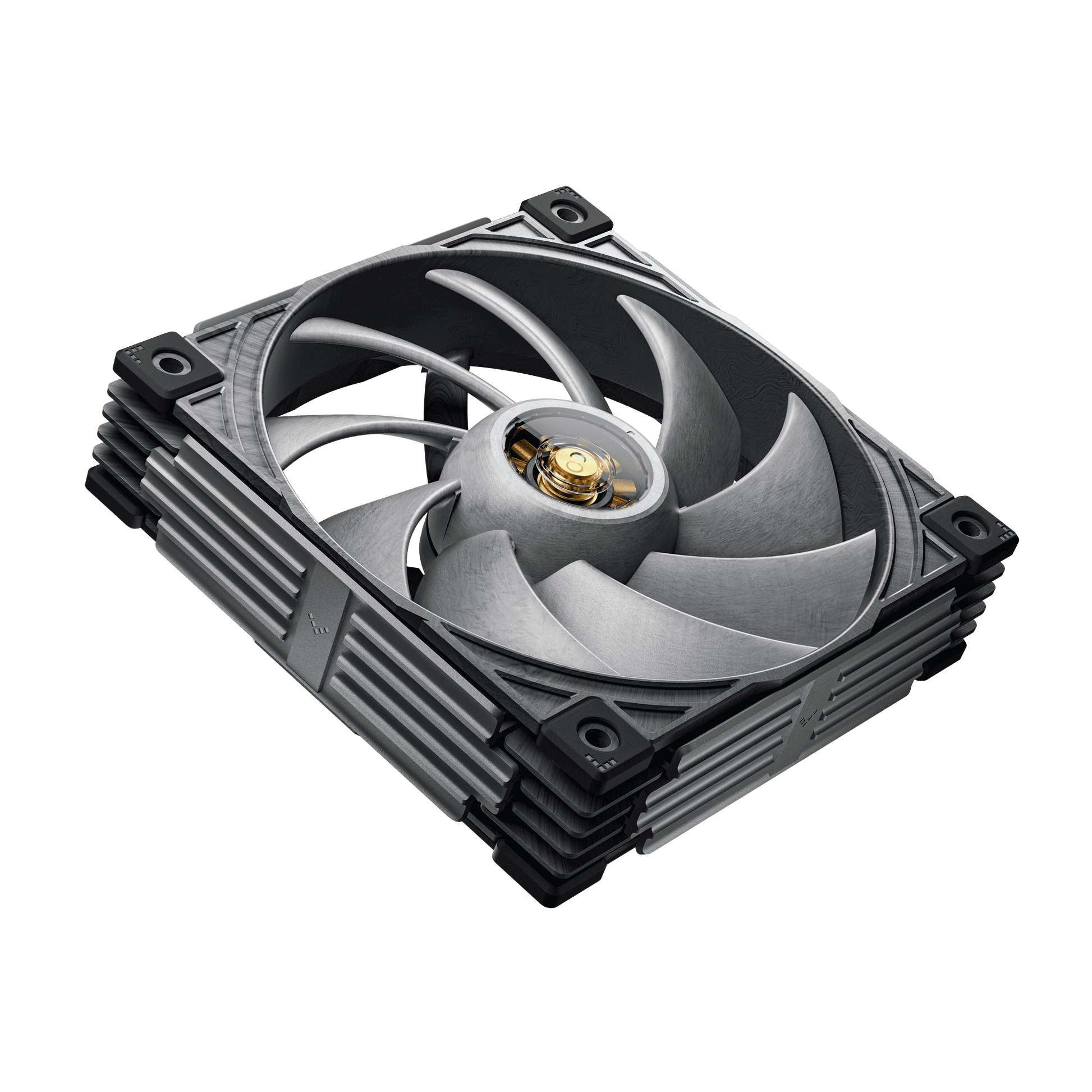

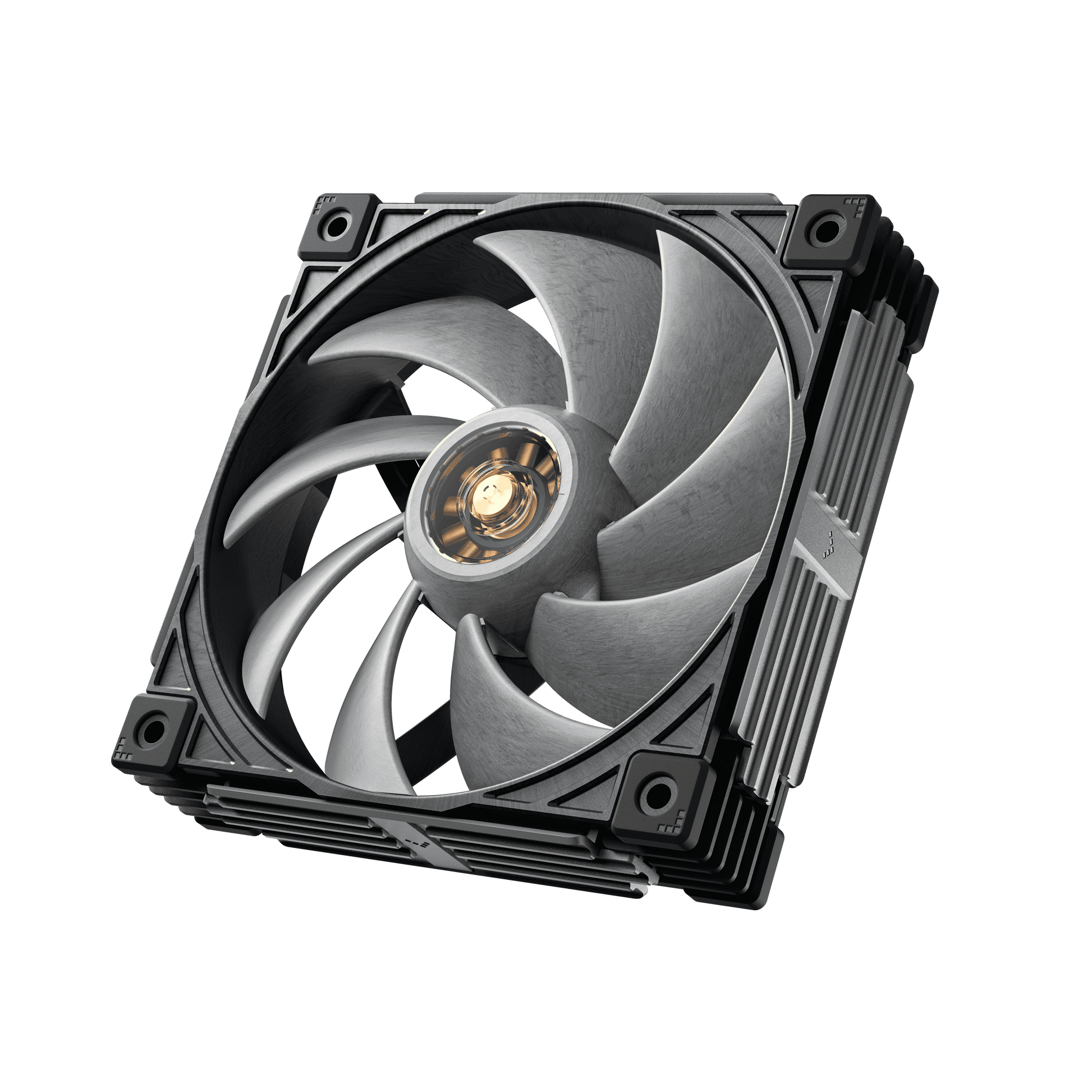

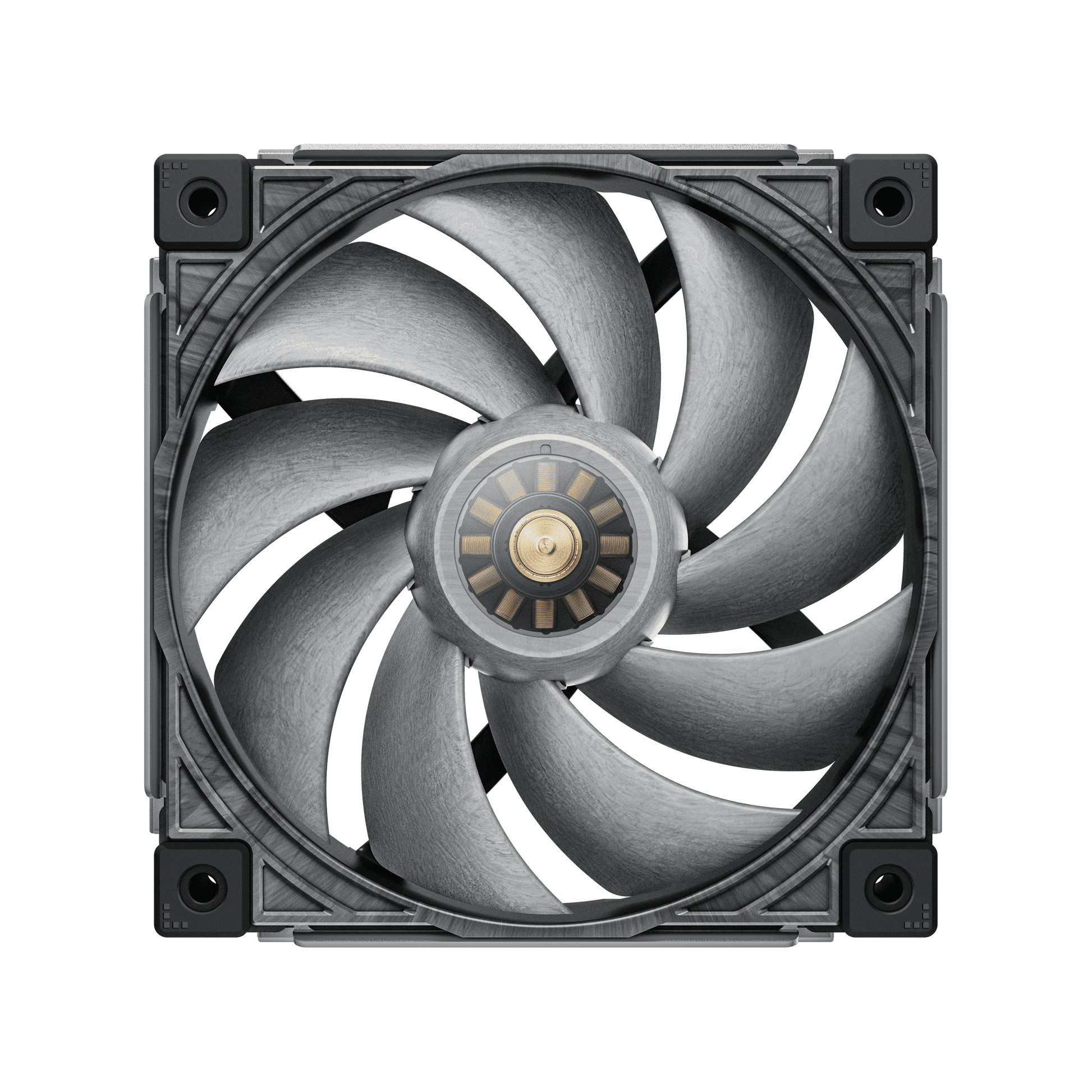

Sudokoo MACH120 – 30mm LCP Performance Fan with Dual Bearings
Sudokoo MACH120 – 30mm LCP Performance Fan with Dual Bearings
SKU:MACH120
💡 Turbo Engineering in a 120mm Frame
Meet the Sudokoo MACH120 – a next-gen PC cooling fan built for power users. With a 3-phase, 12-slot, 10-pole motor, custom hybrid hydraulic bearings, and Liquid Crystal Polymer (LCP) blades, MACH120 delivers exceptional static pressure, high RPM performance, and long-term durability—everything pro builders expect from Sudokoo.
🔑 Key Features:
High-Pressure Performance Design
- Fan Speed: 500–3000 RPM ±10%
- Max Airflow: 108 CFM
- Static Pressure: 7.31 mmAq
- Noise Level: <39.9 dB(A)
- 0 RPM Mode: Under <5% PWM (for complete silence)
Thick 30mm Aerodynamic Frame
The 30mm body enhances airflow compression and cooling efficiency, especially when used with dense radiators.
Liquid Crystal Polymer (LCP) Frame & Blades
Reinforced with glass fiber for exceptional durability, heat resistance, and minimal vibration.
Dual-Bearing Hybrid System
Developed in collaboration with PORITE Japan, MACH120 uses oil-gas cycle tech, brass tubes, and sealing rings to achieve ultra-low friction and quiet operation.
Precision Motor Design
3-phase, 10-pole, 12-slot FOC closed-loop motor with top-grade neodymium magnets delivers smoother, stronger output.
Customizable Side Panel Support
Includes 3D-printable design files for user-created fan side panels (visual mods, cable shields, etc.).
Anti-Vibration Padding
Full-corner rubber dampeners reduce case resonance and uneven mounting pressure.
LED Toggle Switch
Subtle white internal LEDs (can be turned off manually).

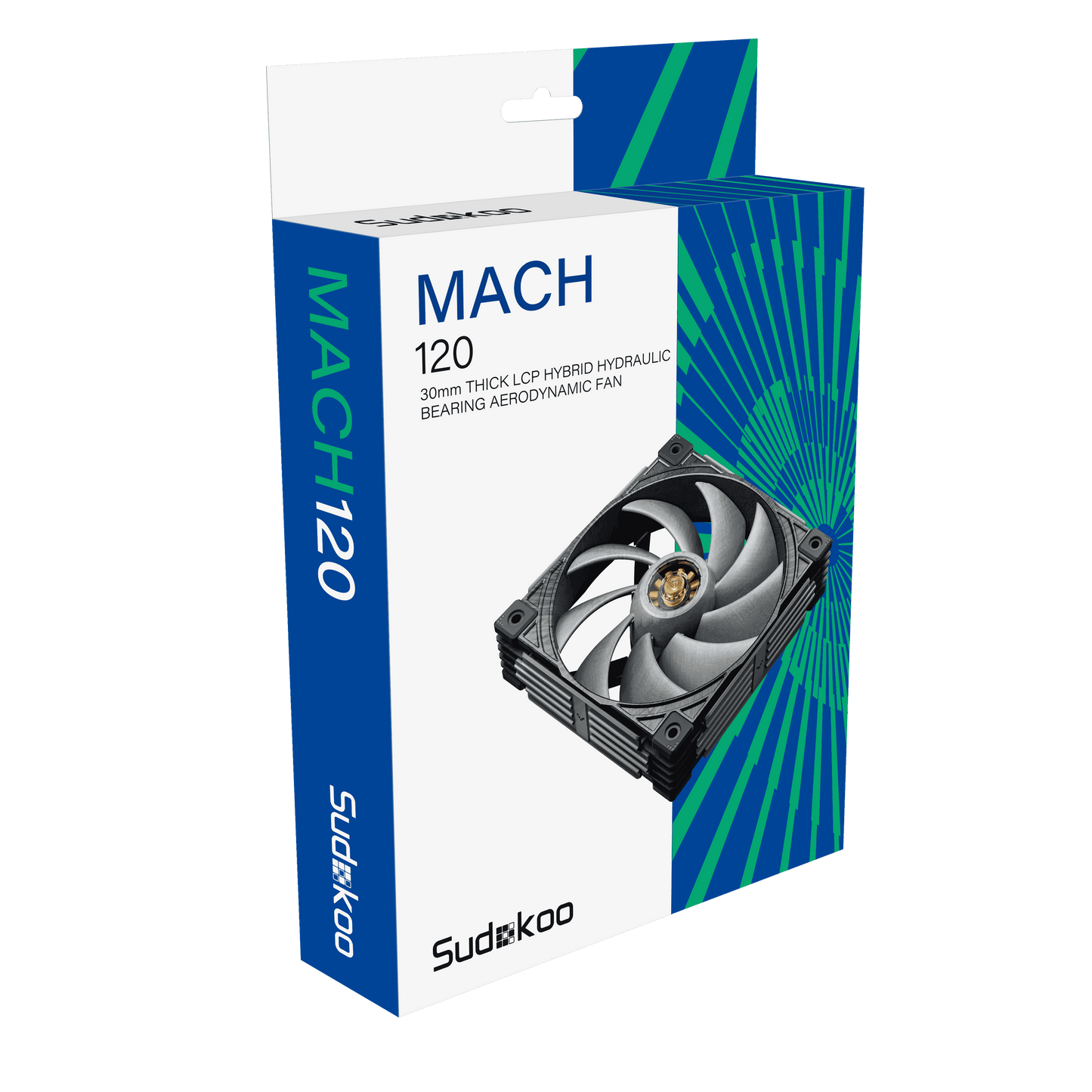

🧰 What's in the Box:
- MACH120 Fan (30mm thickness)
- Screws & Mounting Kit
- QR code for 3D custom panel download
- Quick Start Guide
💻 Recommended Use Cases:
- Radiator cooling (240mm / 360mm AIOs)
- High-pressure exhaust or intake
- GPU airflow optimization
- Silent PC builds with 0 RPM idle support
Couldn't load pickup availability
ENGINEERING PERFECTION
All of the research and development results in an impressive performance fan package that focuses on outstanding airflow, concentrated static pressure, and relatively quiet operation.
500~3000 RPM±10%
108 CFM
7.31 mmAq
≤39.9 dB(A)
QUALITY YOU CAN SEE
Each fan has a transparent window that showcases the high-quality engineering of the fan motor.
Subtle white LED sare positioned behind the bearing to highlight every detail and can be turned off with a quick flick of a tiny switch in the rear of the fan hub frame.
ENHANCED MATERIALS
Unleash the power of the MACH120 3IN1 fan with its high-performance 3-phase, 10-pole, 12-slot FOC closed-loop control motor, boasting a top-quality Neodymium magnet.Utilizinghigh-precision injection molding, our advanced process combines Liquid Crystal Polymer with glass fiber to significantly enhance the structural integrity of fan blades and frames.A design combination rarely found in case fans thatminimizes vibrationsby reducing the force produced between wide gaps between poles, slots, blades, and frames.
